Series UL - 815

Feature

  • Continuous Electricity is not required. 100% safe in used.
  • Power for all poles transferred to ring / plates to hold the job firmly.
  • Assembled with power full magnets. So heavy cut can taken
  • Poles individually magnetized for full loading power

Application

  • Use in vertical and horizontals grinding Machine.

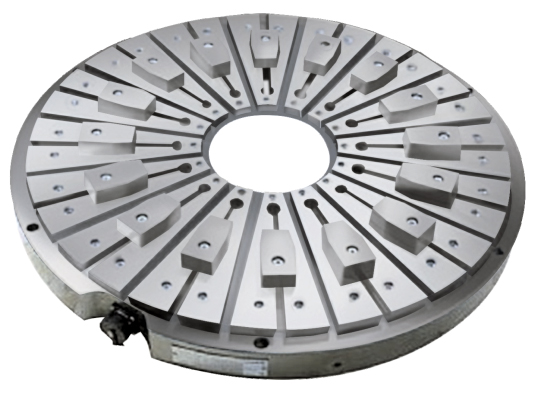

  • Radially movable location blocks will help to position and secure work pieces. This is also necessary for wheel clearance

Sr. No. Cat No. Size ( mm )
1. UL - 81501 Ø 300 x 100 H
2. UL - 81502 Ø 450 x 100 H
3. UL - 81503 Ø 500 x 100 H
4. UL - 81504 Ø 600 x 100 H
5. UL - 81505 Ø 800 x 100 H
6. UL - 81506 Ø 1000 x 100 H
7. UL - 81507 Ø 1250 x 115H
8. UL - 81508 Ø 1500 x 115H
9. "Ultra" Variable Control Unit For Above Chucks ON REQUEST
10. "Ultra" Extension Block ON REQUEST
11. "Ultra" Extension Jaws ( Movebal ) ON REQUEST
