"ULTRA" Brand Magnetic Tool Setting Gauges

    Manufacturer, Supplier, Exporter
  • Home
  • Products
  • Magnetic Products
  • Magnetic Tool Setting Gauges

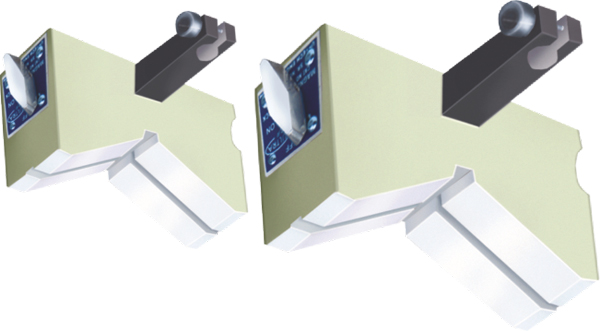

Series UL- 505

  • Used with boring bar for presetting of the cutting tool.
  • Change in the setting of the tool measures variation in bore dimension.
  • Suitable clamp is provided for holding dial indicator ( for UL - 50504 & UL - 50505 )
  • Powerful magnet with ON-OFF facility.
  • "V" is hardened & ground within 5 microns.
  • The included angle of V is 90°.
  • Hardness 52 - 56 Rc.
  • Also manufactured as per customer's requirement.
Magnetic Tool Setting Gauges, Magnetic Products, Magnetic Lifter, Electromagnetic Lifter
Sr. No.  Cat No. Size ( mm ) Slot ( mm ) Range ( mm )
1. UL-50501 72 L x 68 H x 35 T 14 x 2 Ø 25 - Ø 70
2. UL-50502 76 L x 75 H x 35 T 14 x 2 Ø 35 - Ø 90
3. UL-50503 80 L x 75 H x 40 T 14 x 2 Ø 40 - Ø 105
4. UL-50504 100 L x 85 H x 40 T 14 x 2 Ø 40 -Ø 125
5. UL-50505 120 L x 90 H x 40 T 14 x 2 Ø 110 - Ø 180

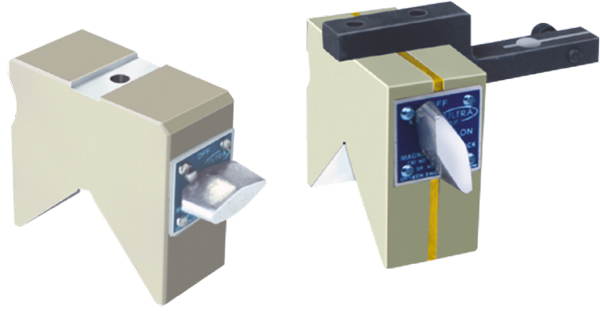

  • Used with boring bar for presetting of cutting tool.
  • Change in the setting of the tool measures variation in bore dimension.
  • Suitable clamp is provided for holding dial indicator.
  • Powerful magnet with ON-OFF facility.
  • "V" is hardened & ground within 5 microns.
  • The included angle of V is 120°.
  • Hardness 52 - 56 Rc.
  • Also manufactured as per customer's requirement.
Magnetic Tool Setting Gauges, Magnetic Products, Magnetic Lifter, Electromagnetic Lifter
request-quote
Sr. No.  Cat No. Base Size ( mm ) Range ( mm )
1. UL 50506 60 L x 60 H x 30 T Ø 10 - Ø 50
2. UL 50507 80 L x 80 H x 30 T Ø 10 - Ø 90
3. UL 50508 100 L x 100 H x 35 T Ø 10 - Ø 110
